IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5

Product Categories

Shenzhen SRYLED Photoelectric Co., Ltd

Contact Now

IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5

Name: IP65 6500nits HD led video display panels 1R1G1B outdoor led display board P5
Brand: SRYLED
Price: 1050 USD

Quality IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5 for sale

Brand Name : SRYLED

Model Number : SRYLED - OFS - P5

Certification : CE, LVD, RoHS

Place of Origin : Shenzhen, China

MOQ : 1sqm

Price : US$ 1050 - 1,150 / Square Meter

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 1,000 Square Meter per Month

Delivery Time : 10 - 12 Work Days

Packaging Details : Plywood Case (Plywood case size depend on cabinet quantity)

Pixel Pitch : 5mm

Color Configuration : 1R1G1B 3in1

LED Encapsulation : SMD2727

Module Size : 320mm x 160mm

Module Weight : 0.45kg

Cabinet Size : 960mm x 960mm

Cabinet Weight : 40kg

Warranty : 2 Full Years

Contact Now

IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5

Decription:

IP65 6500nits HD 1R1G1B Outdoor LED Full Color LED Display P5, High Brightness LED Display Screen. Using outdoor high brightness SMD2727 LED lamp to makes sure 6,500nits brightness.

Features:

1. Super light and super slim design

Weight: 40kg/cabinet

Thickness: 100mm

2. Seamless splicing design

Splice: <0.3mm

3. Energy saving design

Max. power consumption: 1400W/sqm

Ave. power consumption: 435W/sqm

4. Great heat disspation design

Specification:

Pixel Pitch	5mm
Pixel Density	40,000dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD2727
Module Size	320mm x 160mm
Module Resolution	64dots x 32dots
Cabinet Size	960mm x 960mm
Cabinet Resolution	192dots x 192dots
Drive Duty	1/8 Constant Current
Brightness	>6,500nits
Viewing Distance	5m - 50m
Viewing Angle	H: 120°, V:120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	1,400W/sqm
Ave. Power Consumption	435W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Waterproof	IP65
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	40kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Widely using for supermarket, shopping plaza, stadium, hotel and train station and etc.

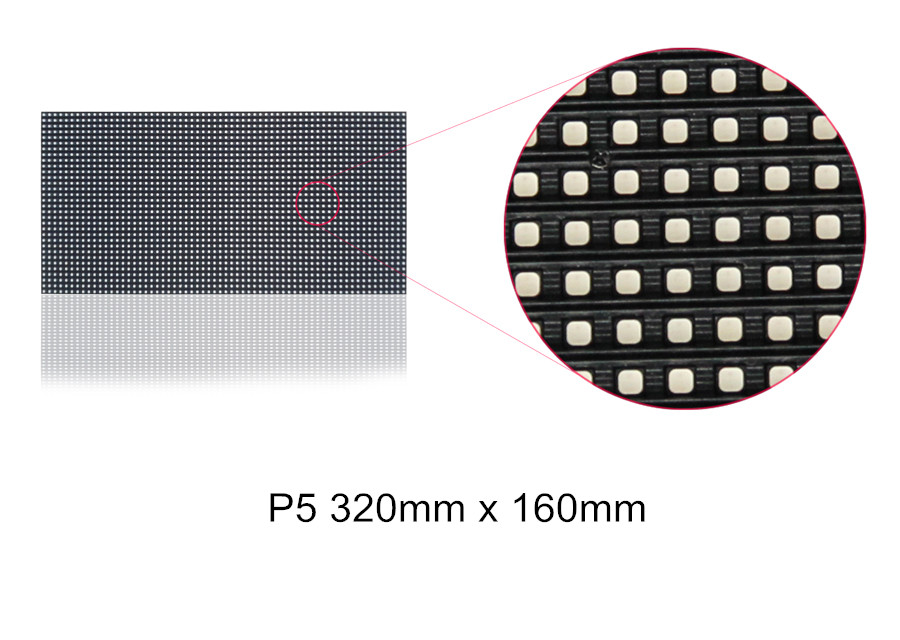

Pictures:

IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5

Competitive Advantages:

1. Fast installation and easy to install.

2. 24hours per 7 days, 2 full years warranty.

3. Vivid and brilliant color, sharp and smooth images.
